Description:
* The NanoVNA-F V2 is a new generation product provides perfect vector network measurement capabilities, tiny and handheld, stand-alone with 4.3-inch LCD display, more active, more colorful is within reach. it portable with 5000mAh battery powered or USB powered.Standby time is up to 7 hours.
* The improved frequency measurement frequency up to 3GHz. The 50K-1500MHz frequency range output provides better than 70dB dynamic, 1500M-3000MHz band provides better than 60dB of dynamics.
* The metal shield is designed to reduce the external interference and improve the measurement accuracy.
* The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters.
* Also PC software NanoVNA-F V2 Saver can be used, it can connect to the instrument and extracts the data for display on a computer.

Features:

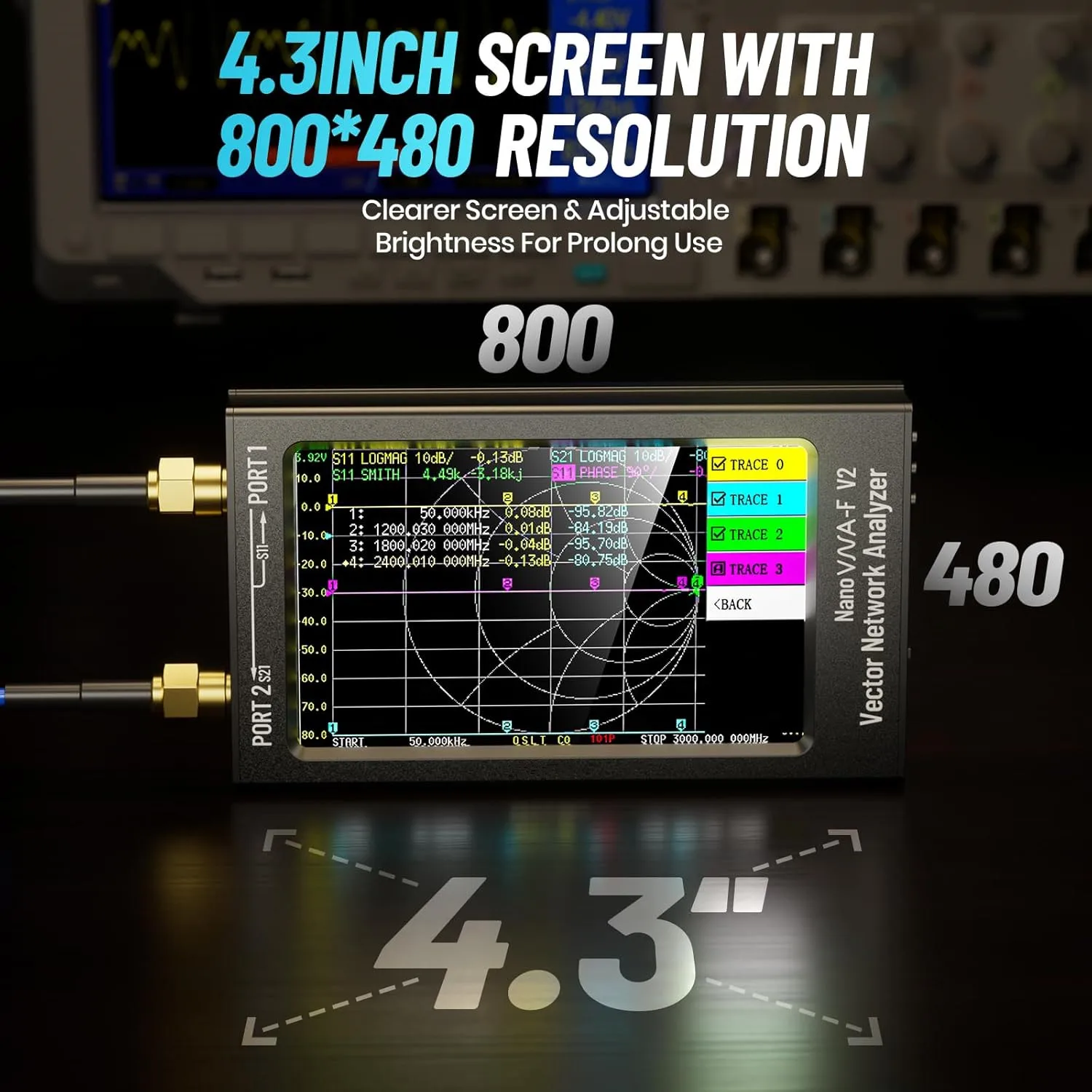

1. 4.3-inch IPS LCD display, resolution 800*480, ultra-wide viewing angle, long-term use does not hurt your eyes.

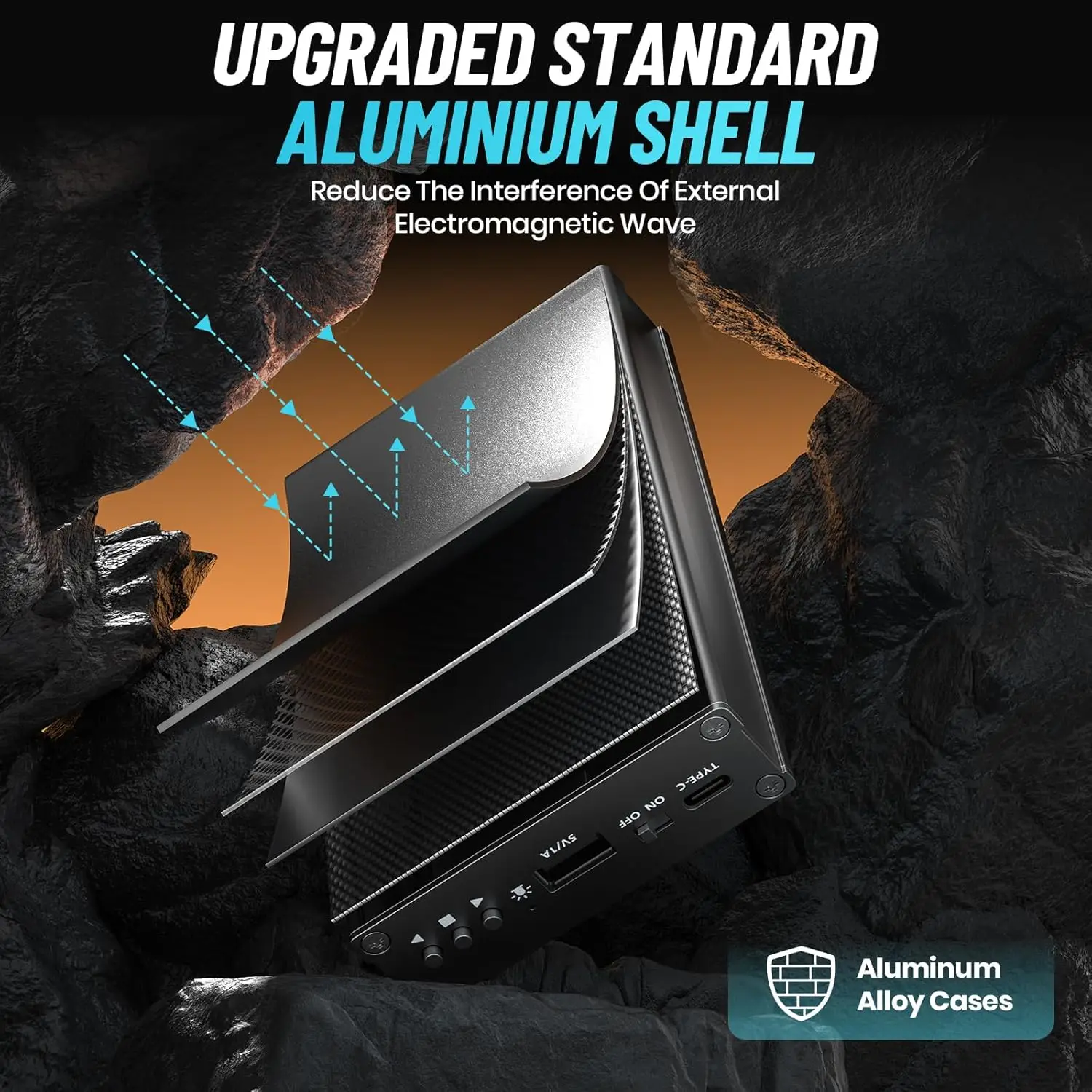

2. All aluminum alloy case, sturdy and durable, effectively shielding electromagnetic interference to ensure measurement accuracy.
3. The body size is 125mm*75mm*20mm, compact and portable.
4. The radio frequency interface is SMA, which is convenient for connecting all kinds of DUTs.

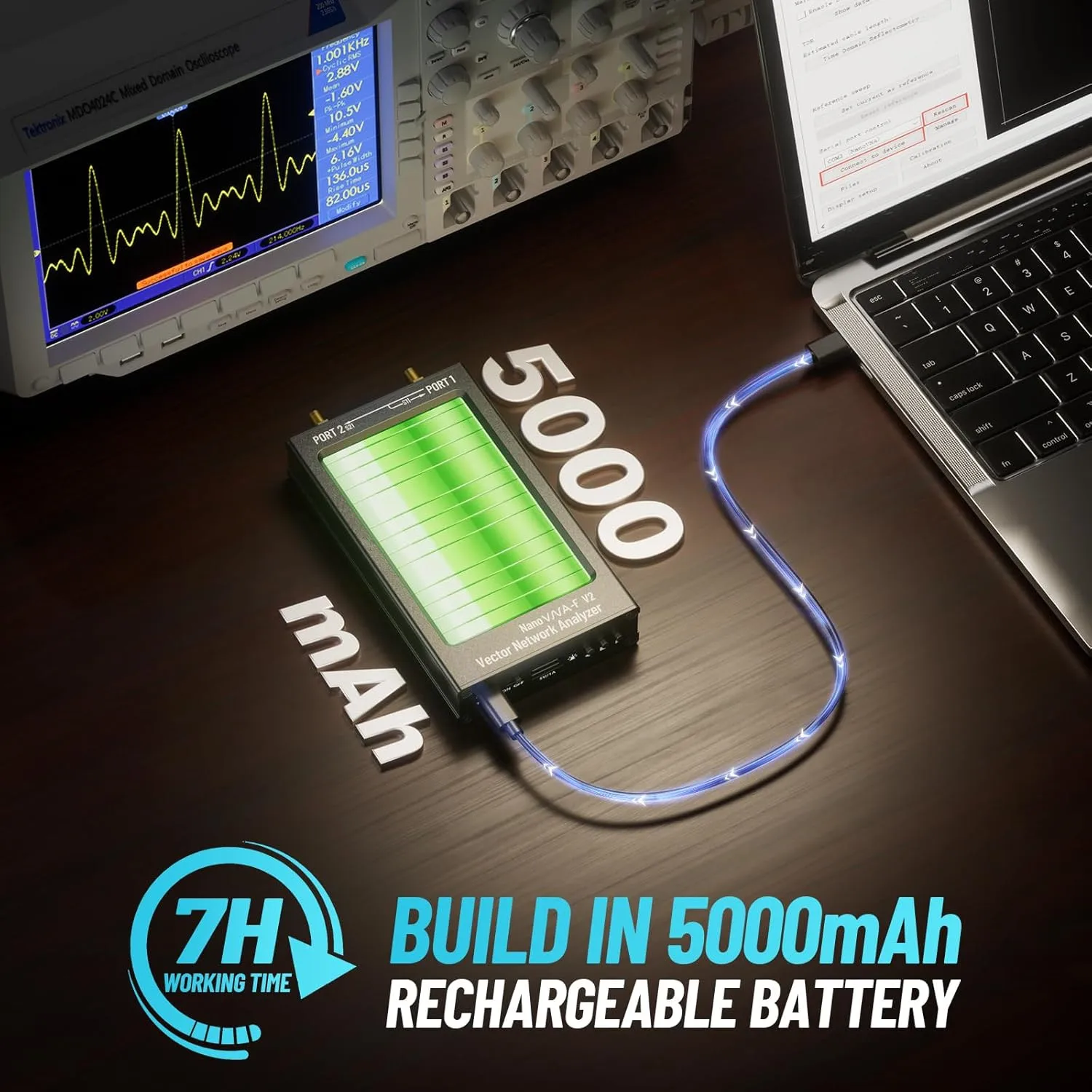

5. 5000mAh large-capacity lithium battery, battery life up to 7 hours.
6. Full touch screen design, with 3 side buttons at the same time, flexible and convenient operation.
7. Support Chinese and English interface.
8. Optimized UI design, convenient for users to perform measurement operations.
9. Support screen brightness adjustment.
10. The firmware can be upgraded through a virtual U disk, no programmer is needed, and the firmware can be upgraded through the included USB type-c data cable.
11. Standard high-quality calibration parts and RG405 phase-stable cable to ensure calibration accuracy.
12. A USB power output interface is designed to support 5V/1A power output.
13. Using 2A high current charging IC, the charging time is shorter.
14. Supporting host computer software, the host computer supports Chinese and English interfaces.
15. The screen image of the device can be obtained by taking a screenshot of the host computer.

Specification:
- Condition: 100% brand new and high quality
- Item Name: NanoVNA-F V2 Analyzer
- Color: Black
- Measurement frequency: 50KHz  -3GHz
- Display: 4.3inch, Resolution 800*480
- Battery: 5000mAh Li-ion Battery
- RF output power: -9dBm (error within 1GHz: ±1dB)
- Frequency accuracy: <0.5ppm

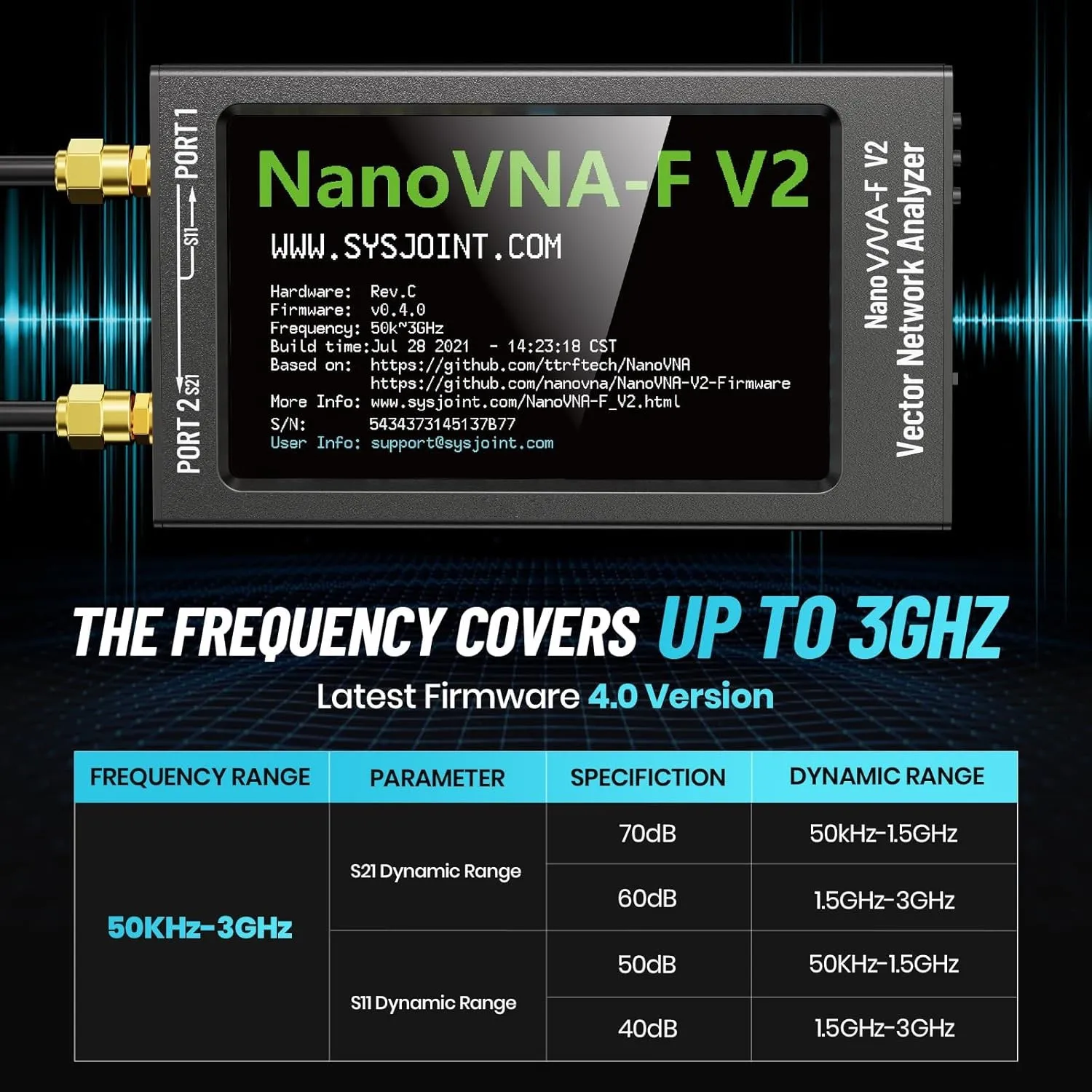

- S21 dynamic range: 70dB (1.5GHz), 60dB (3GHz)
- S11 dynamic range: 50dB (1.5GHz), 40dB (3GHz)
- 2-port return loss: 20dB typ (1.5GHz), 13dB min (3GHz)
- Number of calibration points: 101 points
- Number of scanning points: 101 points
- Number of traces: 4
- Number of mark points: 4 (the mark point bar can be moved up and down on the screen)
- USB interface: USB Type-C communication mode: CDC (serial)
- Setting save: 5 groups (after saving, it can be directly recalled when it is used next time, no need to recalibrate, and the saved parameters before the last shutdown will be automatically recalled when it is turned on next time)
- Support calibration result interpolation, can measure without recalibration after adjusting the measurement frequency band
- Scan time: about 1.9s/1 time (50kHz ~ 3000MHz full frequency band)
- Can measure S parameters, voltage standing wave ratio, Smith chart, phase, group delay, etc.

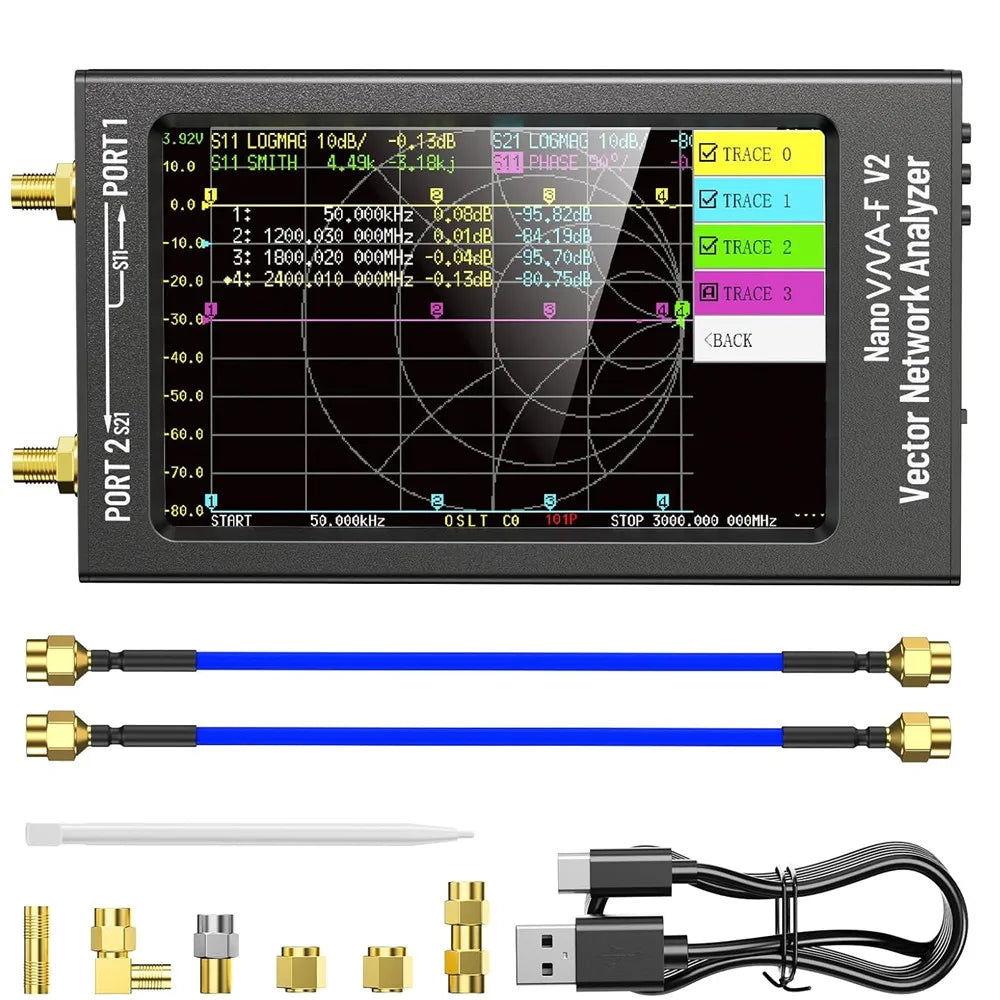

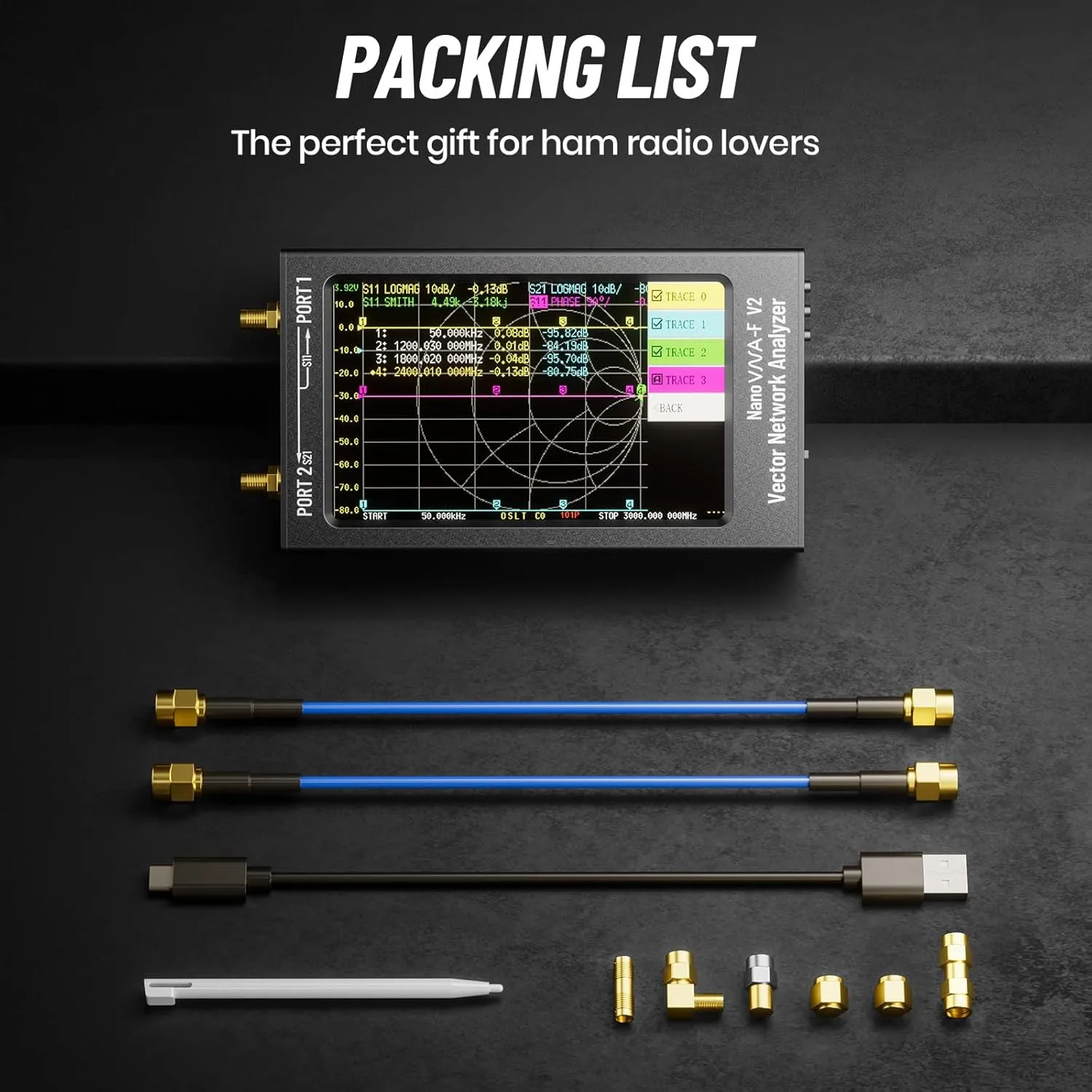

Package Included:
- 1 x Host
- 1 x SMA Open Circuit Calibration Part
- 1 x SMA Short-Circuit Calibration Kit
- 1 x SMA 50Ω Load Calibration Kit
- 1 x SMA-KK Double Head Female Adapter
- 1 x SMA-JJ Double Head Male Adapter
- 1 x SMA-JKW Elbow Female To Male adapter
- 2 x 20cm SMA-JJ RG405 RF Cables
- 1 x USB Type-C Data Cable
- 1 x Stylus Pen

Note:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Applications:
- NanoVNA-F V2 has a high dynamic range and can be used to test UV duplexers
- Measure 915MHz antenna
- Measure 868MHz antenna
- Measure 2.4G microstrip filter
